Product Highlights
- Type: Epoxy
- Brand: Infinity Bond Adhesives
Overview of Infinity Bond EP 3530NDT Epoxy
EP 3530NDT is a thixotropic, unfilled, heat-cure epoxy adhesive with high temperature resistance. It has excellent thermal and chemical resistance.
EP 3530NDT epoxy can be used for coating, bonding, sealing applications where a thin film with high insulating resistance is required, particularly in elevated temperatures. It has a long pot life and bonds well to metals, glass, and ceramic substrates, with an amber color change upon cure.
Sizes Available

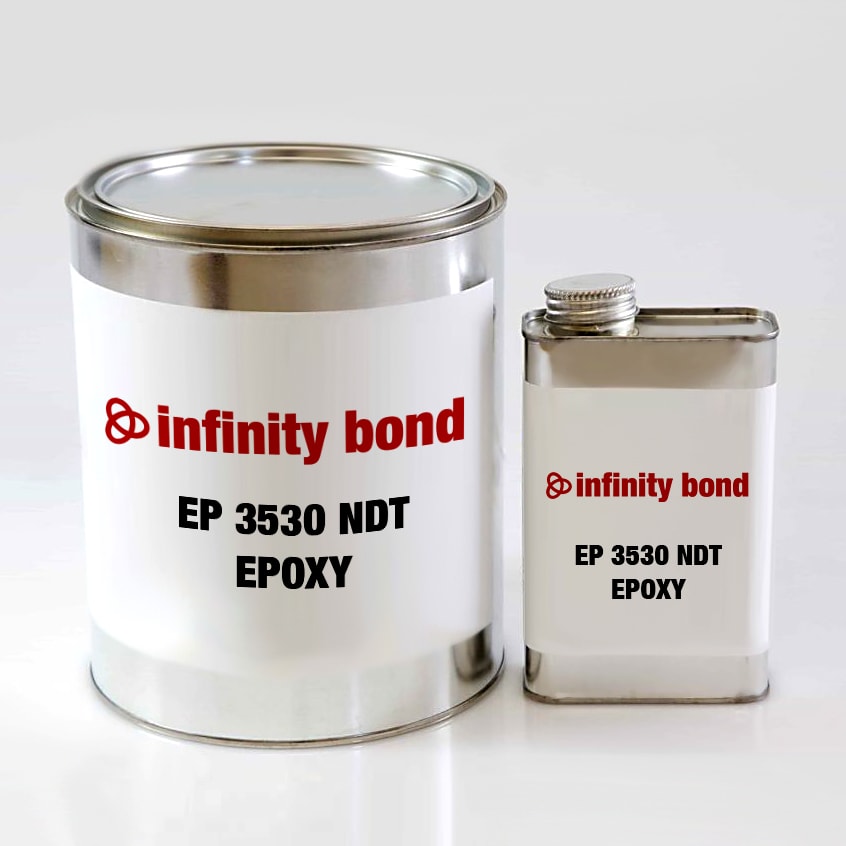

Two-part kits: Pint, Quart, Gallon.

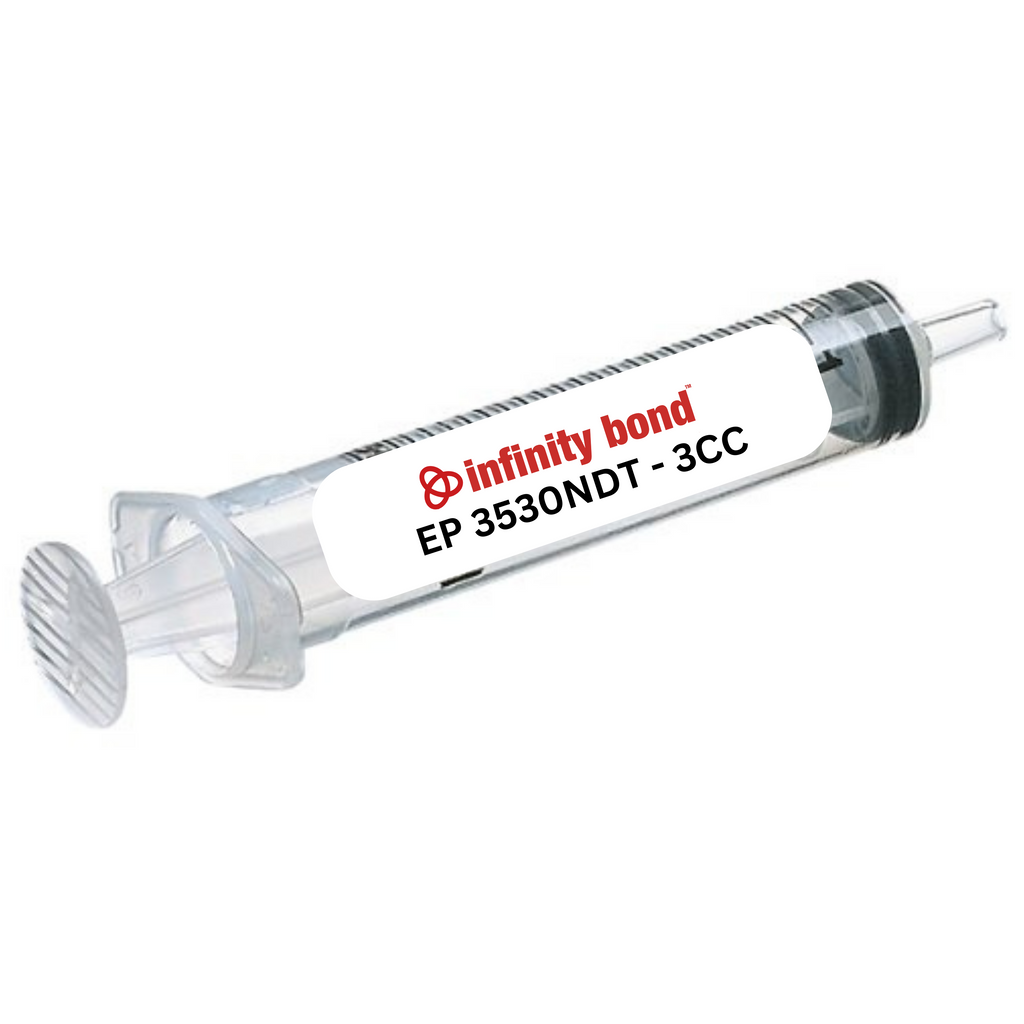

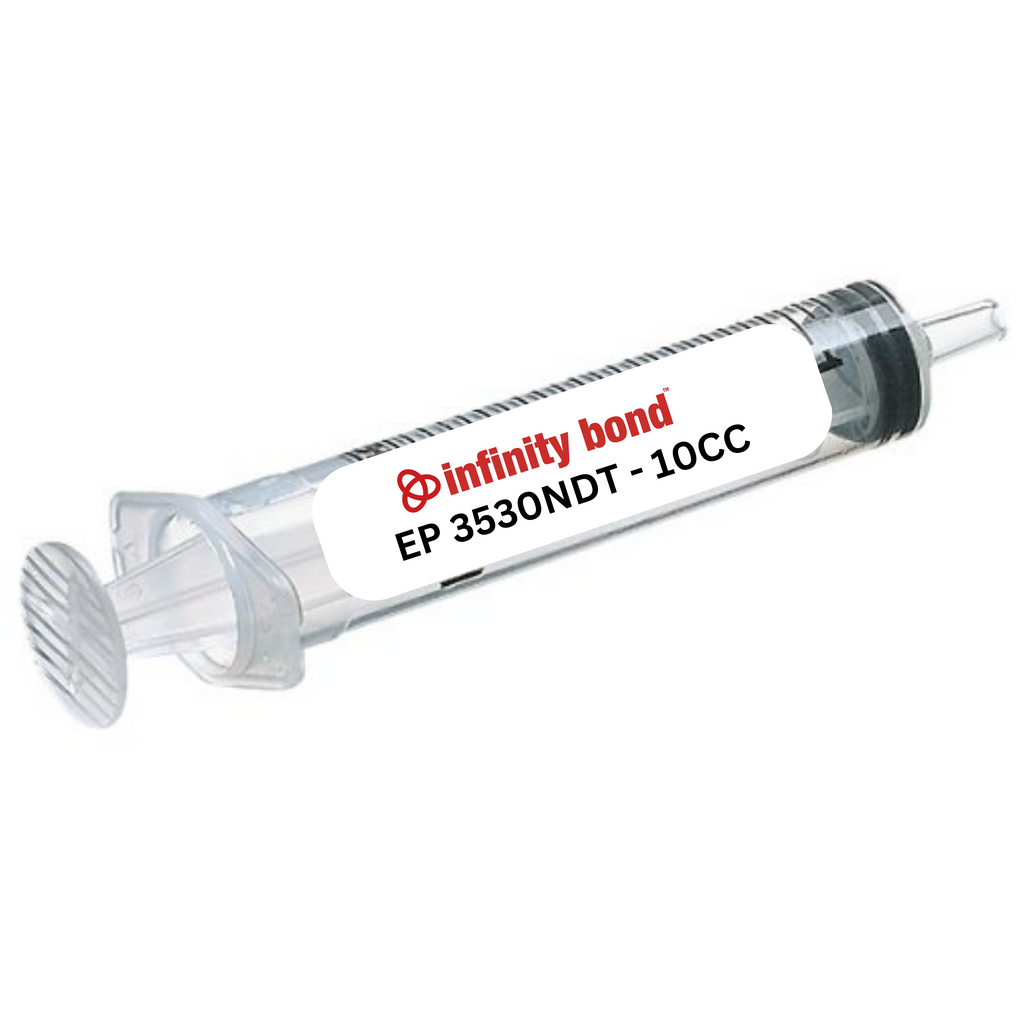

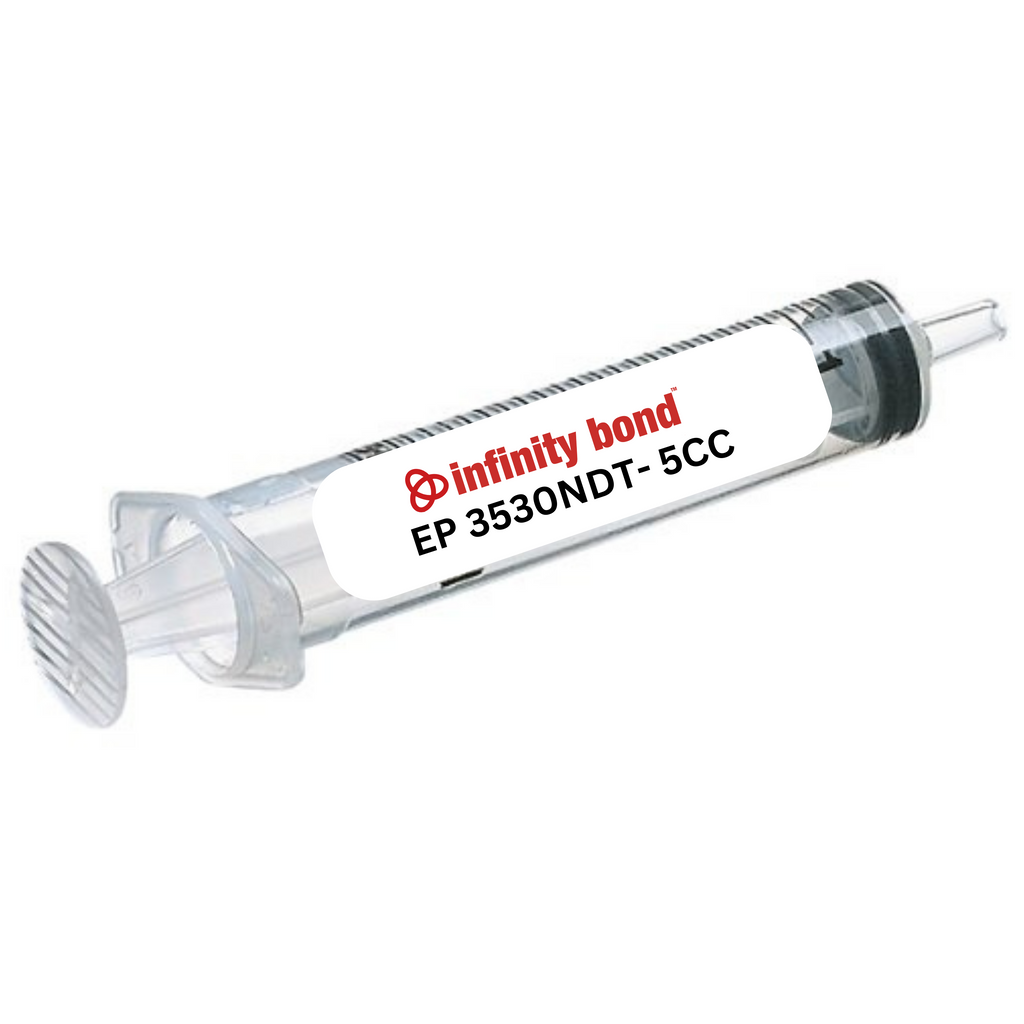

Pre-mixed syringes: 3cc, 5cc, 10cc, 30cc. Syringes are shipped on dry ice at -80°C.
Applications
Semiconductor – Wafer to wafer bonding, MEMs devices, flip chip underfill
Hybrid – Fiber optic, hermetic seals and high temperature packaging sensors
Fiber optic – Sealing fiber into ferrules, transmitting light in the optical pathway, Fiber component packaging; adhesive for active alignment of optics, environmental seal of opto-package, V-groove arrays
Medical – Potting fiber optic bundles into ferrules for light guides and endoscopes; Capable of resisting several sterilization techniques; Meets USP Class VI for Biocompatibility Standards; adhesive for catheter devices
Electronics Assembly – Used as dielectric layer in the fabrication of capacitors; laminating PZT ferroelectrics; Impregnating
Alternative to EPO-TEK® 353ND-T
Infinity Bond EP 3530NDT is a direct replacement for EPO-TEK® 353ND-T epoxy adhesive. If you have questions about switching from EPO-TEK® 353ND- to Infinity Bond EP 3530NDT, don't hesitate to contact us.
Specifications
| No.of Components | 2 |
| Mix Ratio by Weight | 100/10 |
| Mixed Viscosity @RT | 9,000-15,000 cps |
| Pot Life @ 25°C | 5-6 hours |
| Recommended Cure | 1-2 minutes @ 150°C |
| Alternate Cure | 5 minutes @ 120°C |
| Color | Dark Amber |
| Specific Gravity | 1.1 |
| Hardness(Shore) | 85 |
| Refractive Index | NA |
| Lap Shear Strength @25°C (psi) | 2000 |
| Service Temp. Range | -55°C to 250°C |
| Volume Resistivity (500 V) | 1x10^15 |
Data Sheets
Use the form below to request data sheets.
Submit the form below to get the Technical Data Sheet (TDS) or Safety Data Sheet (SDS) for Infinity Bond EP 3530NDT sent to your email address.
Questions about Infinity Bond EP 3530NDT? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.
