Infinity Bond 161-224 Adhesive Static Mix Nozzle

Save on the 161-224 Static Mixer Nozzle from Infinity Bond

We're not claiming to have invented the design for the 161-224 adhesive static mix nozzle. We are however making the 161-224 mixer in the USA and selling it at significant savings over some of our big name competitors.

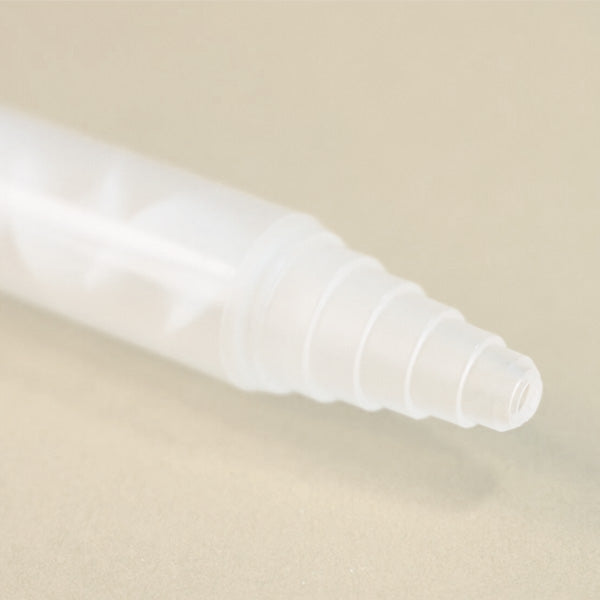

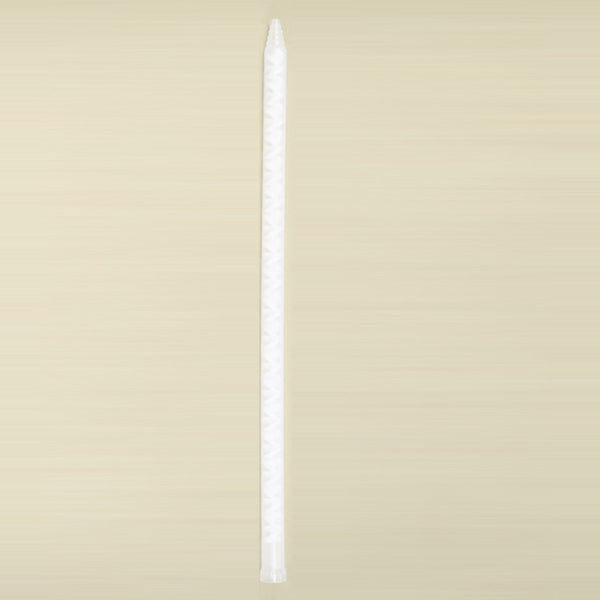

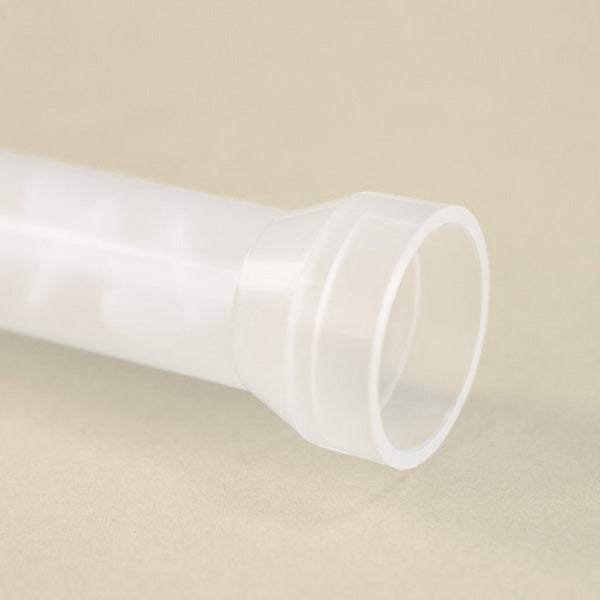

The 161-224 disposable static mixer is a high quality 24 element nozzle made from high quality polypropylene (casing) and high strength polyacetal (elements). This mixer has a bell connection, stepped tip and works great with 1:1 and 2:1 adhesives, especially lower viscosity adhesives or with meter mix machines.

Compare the Infinity Bond 161-224 Adhesive Static Mixer To:

• TAH 161-224
• Nordson 7701010

161-224 Static Mixer Specifications

• Mixing Elements: 24
• Inner Diameter (ID): ~13mm
• Outer Diameter (OD): ~16mm
• Length: ~293 or 11.55 Inches
• Connection Type: Bell
• Nozzle Type: Stepped
