Product Highlights
- Type: Epoxy
- Brand: Infinity Bond
Overview of Infinity Bond EP 3530ND Epoxy
EP 3530ND is a low-viscosity, unfilled, heat-cure epoxy adhesive with high temperature resistance. It has excellent thermal and chemical resistance and maintains a lap search strength up to 210°C.
EP 3530ND epoxy can be used for coating, bonding, sealing applications where a thin film with high insulating resistance is required, particularly in elevated temperatures. It has a long pot life and bonds well to metals, glass, and ceramic substrates, with an amber color change upon cure.
Sizes Available

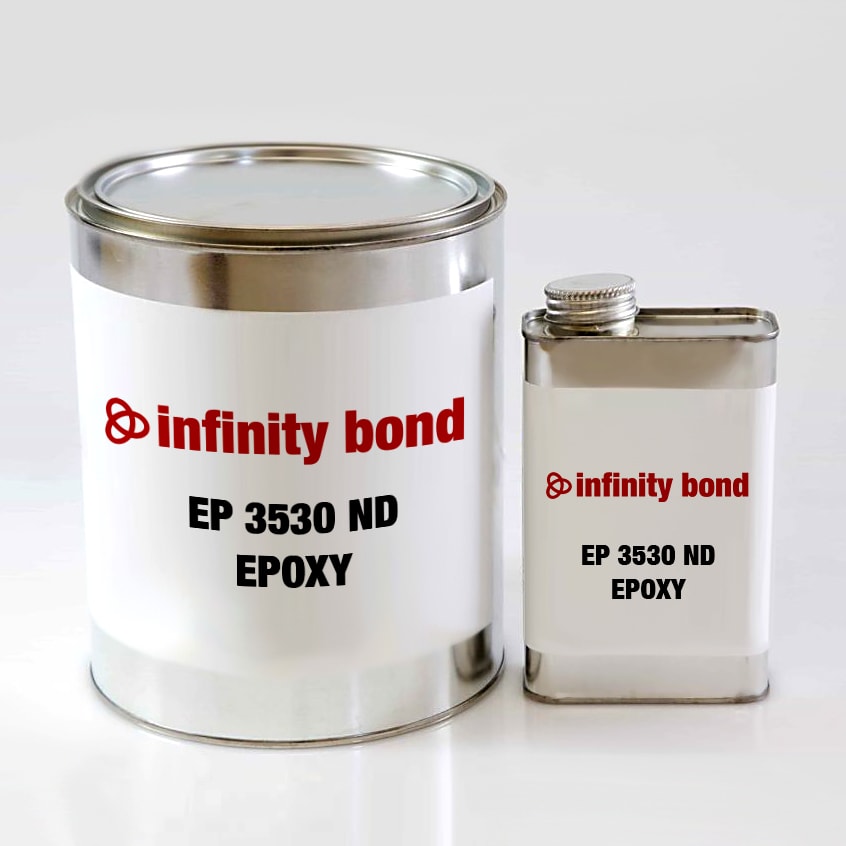

Two-part kits: Pint, Quart, Gallon.

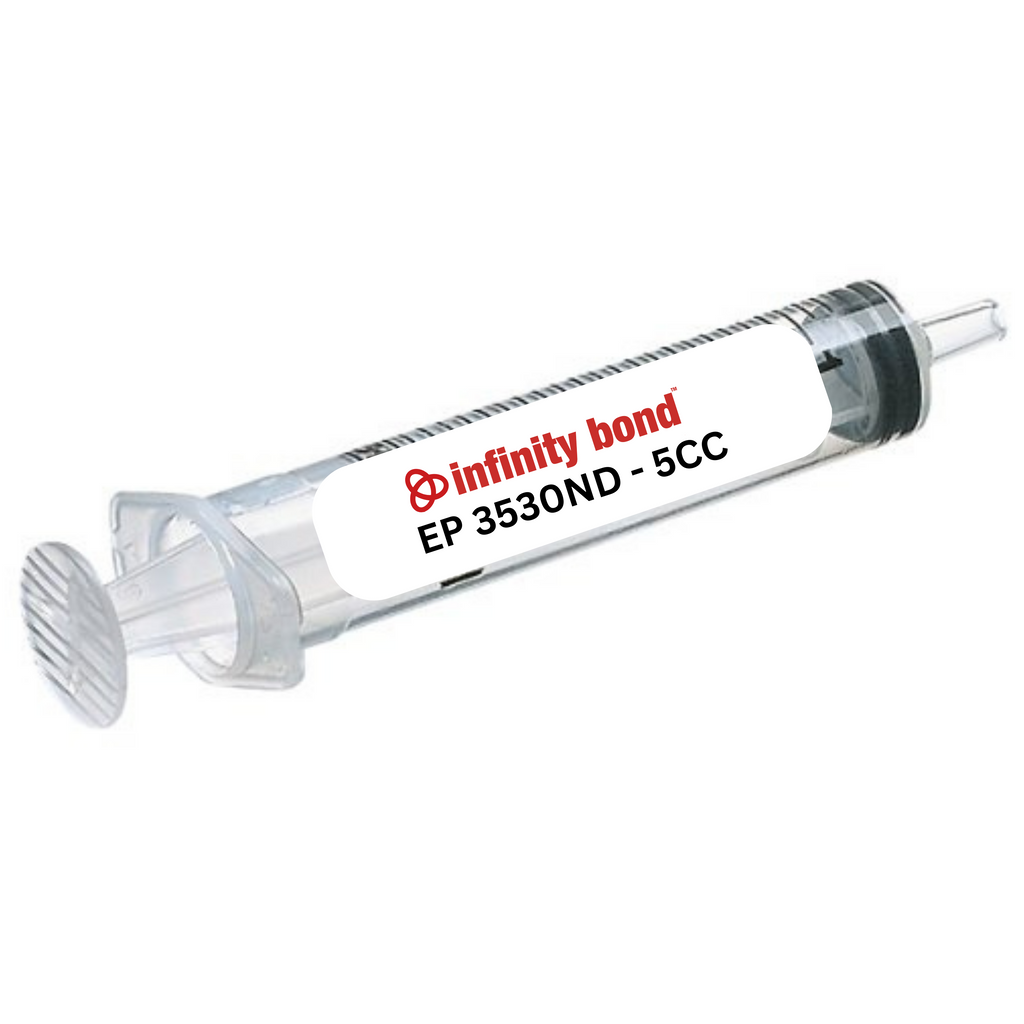

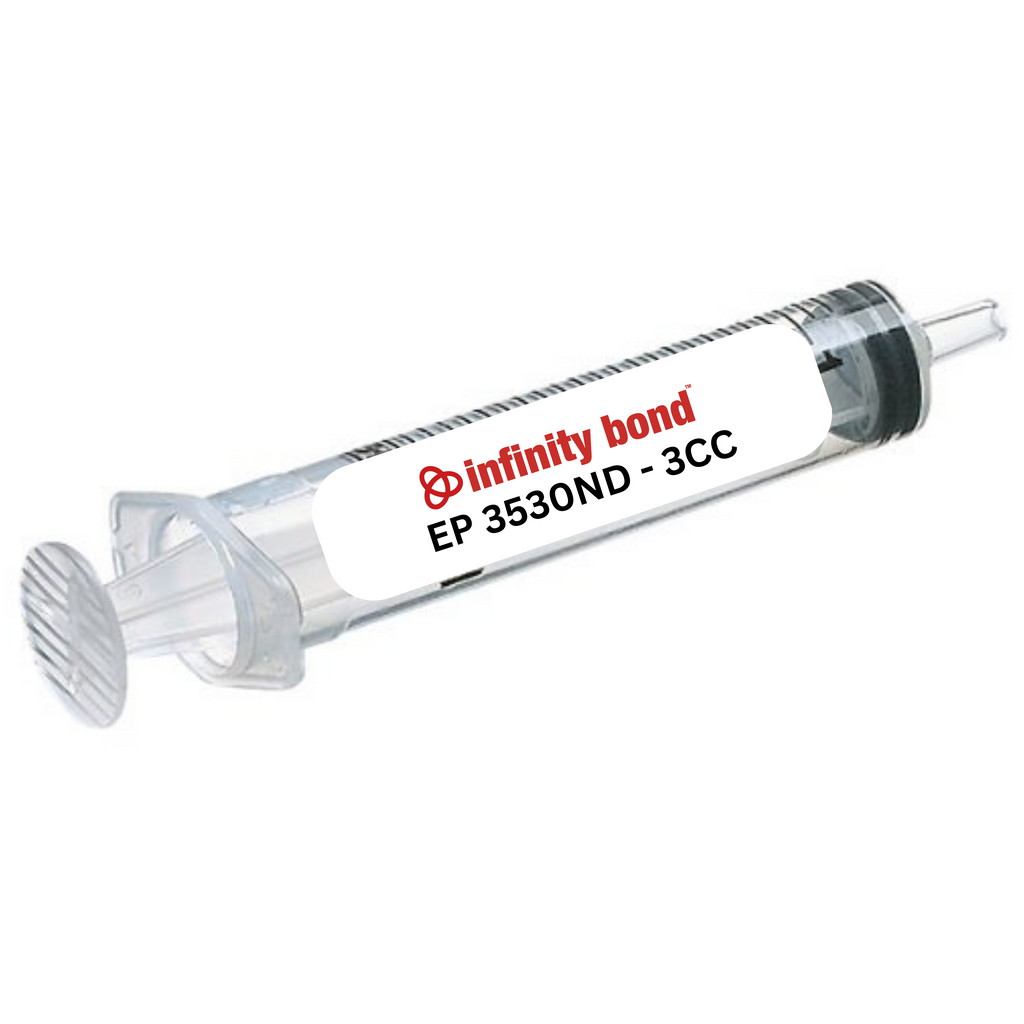

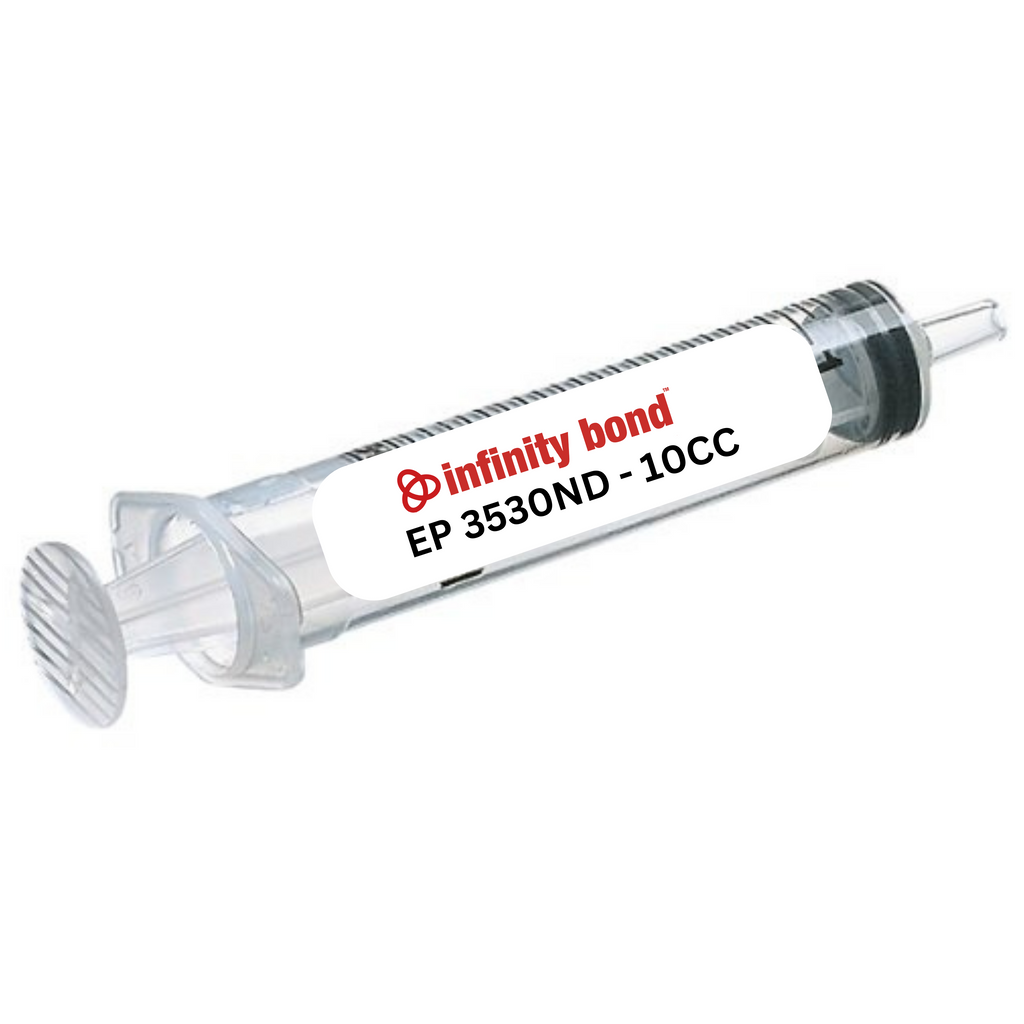

Pre-mixed syringes: 3cc, 5cc, 10cc, 30cc. Syringes are shipped on dry ice at -80°C.
Applications
Semiconductor – Wafer to wafer bonding, MEMs devices, flip chip underfill
Hybrid – Fiber optic, hermetic seals and high temperature packaging sensors
Fiber optic – Sealing fiber into ferrules, transmitting light in the optical pathway, Fiber component packaging; adhesive for active alignment of optics, environmental seal of opto-package, V-groove arrays
Medical – Potting fiber optic bundles into ferrules for light guides and endoscopes; Capable of resisting several sterilization techniques; Meets USP Class VI for Biocompatibility Standards; adhesive for catheter devices
Electronics Assembly – Used as dielectric layer in the fabrication of capacitors; laminating PZT ferroelectrics; Impregnating
Alternative to EPO-TEK® 353ND
Infinity Bond EP 3530ND is a direct replacement for EPO-TEK® 353ND epoxy adhesive. If you have questions about switching from EPO-TEK® 353ND to Infinity Bond EP 3530ND, don't hesitate to contact us.
Note: If you use the thixotropic version, EPO-TEK® 353ND-T, our replacement is EP 3530NDT.
Specifications
| No.of Components | 2 |
| Mix Ratio by Weight | 100/10 |
| Mixed Viscosity @RT | 3000-5000 cps |
| Pot Life @ 25°C (100 gram) | 5-6 hours |
| Recommended Cure | 1-2 minutes @ 150°C |
| Alternate Cure | 5-10minutes @ 125°C |
| Color | Dark Amber |
| Specific Gravity | 1.18 |
| Hardness(Shore) | D-87 |
| Refractive Index | NA |
| Lap Shear Strength @25°C (psi) | 2600 |
| CTE (Below Tg) 10-6/°C | 54 |
| Service Temp. Range | -55°C to 250°C |
| Volume Resistivity (500 V) | >1x10^15 |
Data Sheets
Use the form below to request data sheets.
Submit the form below to get the Technical Data Sheet (TDS) or Safety Data Sheet (SDS) for Infinity Bond EP 3530ND sent to your email address.
Questions about Infinity Bond EP 3530ND? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.
